Altoids Audio splitter hack

I needed a quick 2-to-1 1/4" Stereo Jack box for the Church's sound board. This should do the trick!

 The switch either shorts both Jack's Left and Right Channels together or just selects the Right from one jack and the Left from the other jack. I wasn't sure if shorting the channels together would effect the audio quality due to extra loading, so I put the switch in so I could play around with it.

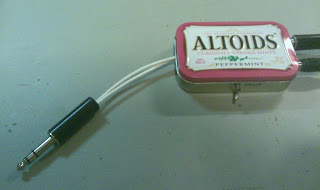

In a nice minty fresh shielded Altoids Box :)
